HYDROGEN SOLUTION

HYDROGEN SOLUTION

Water Electrolysis System

Water Electrolysis System

| System Introduction

| System Introduction

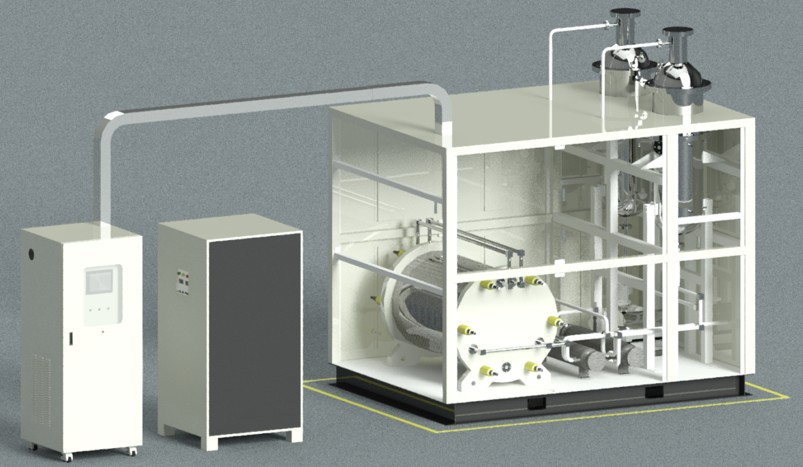

The Hygen Gas Generator, developed by HTS, is an advanced water electrolysis system designed to produce a high-purity, high-temperature heat source by electrolyzing water — generating oxygen at the anode and hydrogen at the cathode.

Engineered with a strong emphasis on safety and reliability, the system ensures the complete separation of hydrogen and oxygen during generation. The production output of hydrogen and oxygen can be precisely adjusted to meet various industrial applications, including welding, cutting, glass processing, generator cooling, and reduction heat treatment.

As an eco-friendly energy solution, the Hygen Gas Generator is widely utilized across both domestic and international industries, contributing to a greener future.

* Wide range of solutions from small-capacity hydrogen generators to large-scale water electrolysis plants
* Full turnkey services including design, manufacturing, supply, installation, and commissioning
* Expertise in both Alkaline Water Electrolysis (AWE) and Proton Exchange Membrane (PEM) technologies

The Hygen Gas Generator, developed by HTS, is an advanced water electrolysis system designed to produce a high-purity, high-temperature heat source by electrolyzing water — generating oxygen at the anode and hydrogen at the cathode.

Engineered with a strong emphasis on safety and reliability, the system ensures the complete separation of hydrogen and oxygen during generation. The production output of hydrogen and oxygen can be precisely adjusted to meet various industrial applications, including welding, cutting, glass processing, generator cooling, and reduction heat treatment.

As an eco-friendly energy solution, the Hygen Gas Generator is widely utilized across both domestic and international industries, contributing to a greener future.

* Wide range of solutions from small-capacity hydrogen generators to large-scale water electrolysis plants
* Full turnkey services including design, manufacturing, supply, installation, and commissioning
* Expertise in both Alkaline Water Electrolysis (AWE) and Proton Exchange Membrane (PEM) technologies

| Product Configuration

| Product Configuration

UNIT Hydrogen Gas Generator MODEL
HG-15MS HG-50MS HG-200MS HG-500MS HG-1000MS
Ⅰ. Hydrgen Gas Production
Flow Rate Nm³ 15 50 200 500 1000
Operation Pressure Mpa 0.3 – 0.8 0.3 – 0.8 0.3 – 0.8 0.3 – 0.8 0.3 – 0.8
Production Temperature 32 32 32 32 32
Hydrogen Purity % 99.999 99.999 99.999 99.999 99.999
Operation Range % 15 – 100 15 – 100 15 – 100 15 – 100 15 – 100
Ⅱ. Performance Guaranty
Voltage Factory Configured, 380 – 480 VAC, 3-Phase
Frequency 50 – 60 Hz
Ⅳ. Performance Guaranty
Stack P/W Consumption kWh/Nm³ 4.7 4.7 4.7 4.7 4.7

| TECHNOLOGY

| TECHNOLOGY

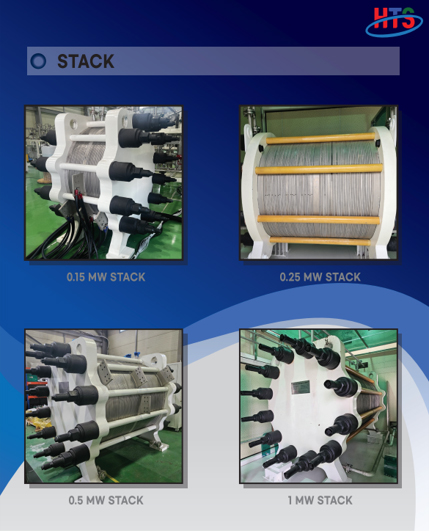

STACK

STACK

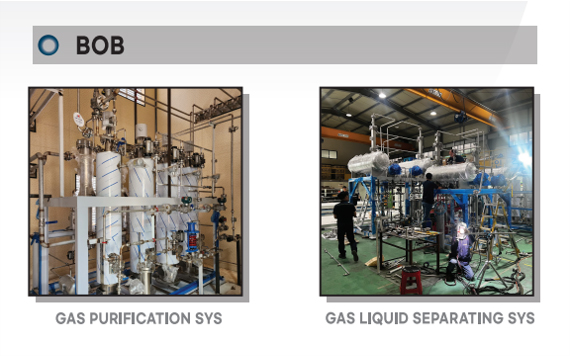

BOP

BOP

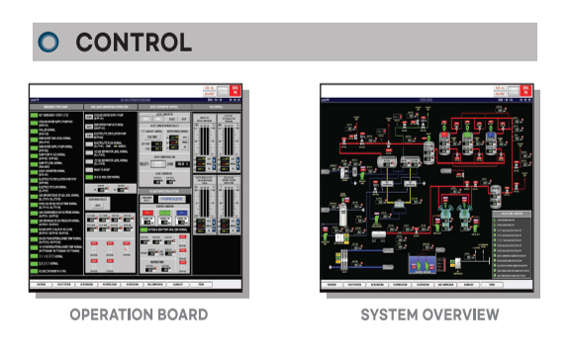

CONTROL

CONTROL
